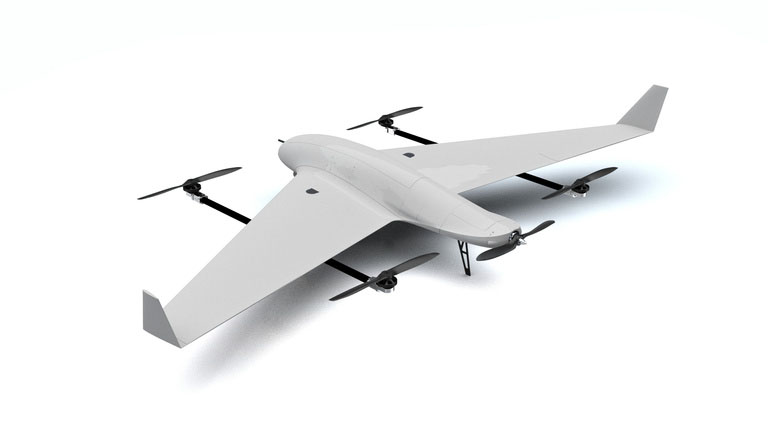

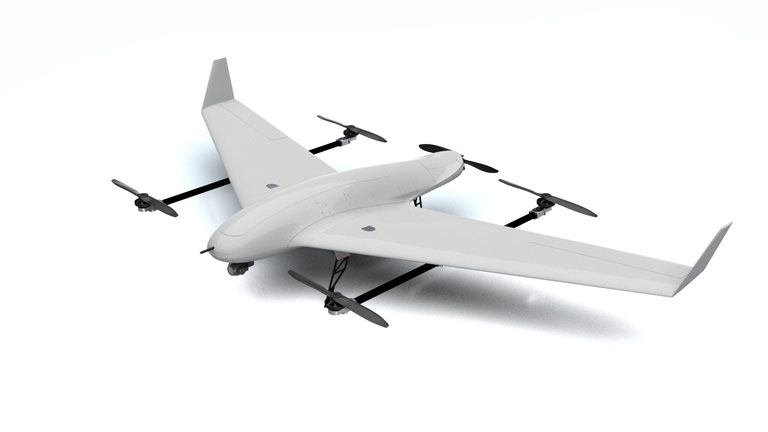

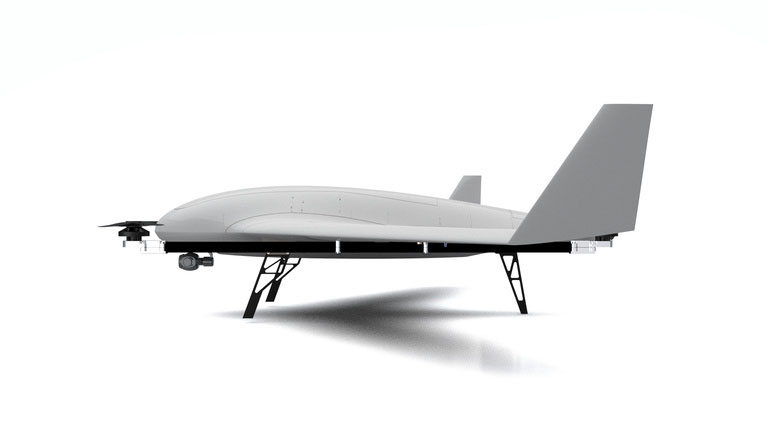

ISS Surveillance Drone

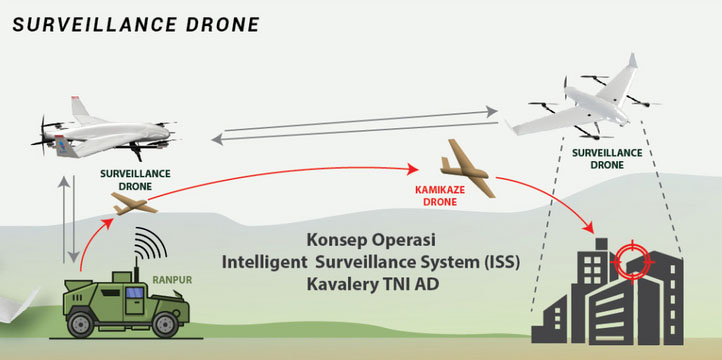

The ISS Drone is a surveillance drone developed in collaboration between PT SAS Aero Sishan and PT Len Industri (Persero). It serves as an aerial monitoring solution to support tactical operations of the Indonesian Army Cavalry Unit (TNI AD).

This drone integrates advanced mission payloads for intelligence and surveillance (I&S) operations. Equipped with high-resolution optical and thermal sensors, and autonomous navigation capabilities, it enables real-time data collection across operational zones.

Key Features

• Real-time area surveillance and forward observation
• High-resolution optical and infrared (thermal) sensors
• Autonomous navigation for precision monitoring
• Supports high-mobility troop coordination and battlefield awareness

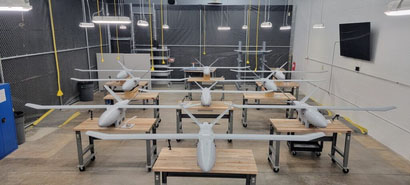

• Local production capacity up to 15 units/month
• Cost-effective without compromising quality

Technical Specifications

• Material: Fiber Glass & Carbon Fiber
• Dimensions: 2100 x 1000 x 1000 mm ± 50 mm
• Ground Clearance: 160 mm ± 25 mm
• MTOW (Maximum Takeoff Weight): 7.3 kg
• Max Payload: 700 g
• Flight Time: 60 minutes
• Takeoff / Landing: Vertical (VTOL)
• Cruise Speed: 20 m/s
• Stall Speed: 16 m/s
• Transmission Distance: 8 km
• Battery: 6s 2200 mAh LiPo Battery

Sensor Specifications

• Imager Sensor: 1/2.8" Sony CMOS
• Effective Pixels: 5.13 MP
• Digital Zoom: 32x
• IR Thermal: 69.9° (Wide) to 8.7° (Tele)
• Horizontal Angle of View: 69.9°

The ISS Drone is a robust tactical asset that minimizes the risk of surprise enemy contact and enhances the effectiveness of field coordination.
